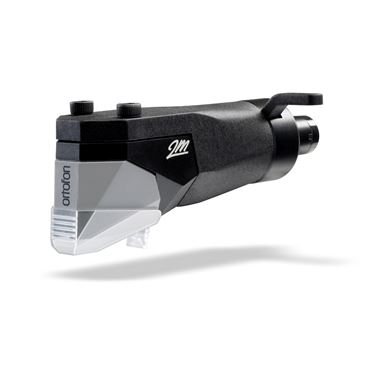

ORTOFON 2M MONO PnP MKII - TEL. 324228923 / Rybnik!

Opis produktu

SPECYFIKACJA TECHNICZNA:

Output voltage at 1000 Hz, 5cm/sec. - 4 mV
Frequency range at - 3dB - 20-20.000 Hz
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 70 µm
Compliance, dynamic, lateral - 18 µm/mN
Stylus type - Spherical
Stylus tip radius - R 65 µm
Tracking force range - 1.6-2.0g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Internal impedance, DC resistance - 700 Ohm
Internal inductance - 350 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Tracking angle - 20°
Cartridge colour, body/stylus - Black/Grey
Cartridge weight without screws - 7.2 g
2M PnP MkII cartridge with integrated headshell weight - 20 g
2M PnP MkII cartridge with integrated headshell length - 52 mm
